| Material: | Rubber Hose | Apply To: | BMW 3(E90)316d |
|---|

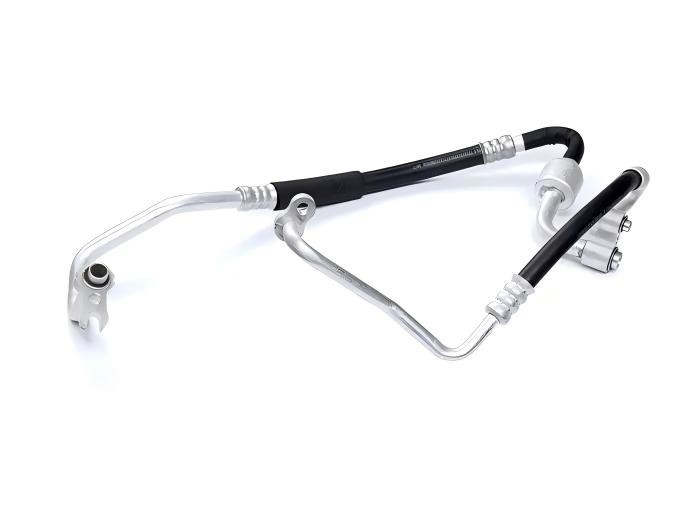

Auto Spare R134a refrigerant gaos Air Conditioning Hose For Bus
Sizes and performance parameters of type C air conditioner hose
| Number | Dimension.mm | Inch | I.D. mm | 0. D. mm | Wall Thickness.mm | Wall Diff Max. mm | Work Pressure Max.MPa | Burst Pressure Min.MPa | Bend Rad Min.mm | Weight. g/m |
| A19 | 19 | 3/4" | 18.5±0.5 | 27. 5±0. 6 | 4.5 | 0.5 | 3.5 | 15 | 105 | 428 |
| A22 | 22.2 | 7/8" | 22.0±0.5 | 30. 0±0. 6 | 4 | 0.6 | 3.5 | 15 | 125 | 420 |
| A28.5 | 28.5 | 9/8" | 28.5±0.5 | 40.0±0.6 | 5.75 | 0.6 | 1.5 | 15 | 150 | 831 |
Appliable refrigerant: R 134a / R 1234yf
Standard: SAE J2064 SAE J3062 QC/T664-2019
Sizes and performance parameters of type C air conditioner hose
| Number | Dimension. mm | Inch | I.D. mm | 0. D. mm | Wall Thickness.mm | Wall Diff Max.mm | Work Pressure Max.MPa | Burst Pressure Min.MPa | Bend Rad Min.mm | Weight. g/m |
| C19 | 19 | 3/4" | 18.5 ±0.5 | 27.5±0.6 | 4.5 | 0.5 | 3.5 | 15 | 105 | 428 |
| C22 | 22.2 | 7/8" | 22.0 ±0.5 | 30.0±0.6 | 4 | 0.5 | 3.5 | 15 | 125 | 420 |
| C28.5 | 28.5 | 9/8" | 28.5 ±0.5 | 40.0±0.6 | 5. 75 | 0.5 | 1.5 | 12 | 150 | 831 |
Appliable refrigerant: R 134a / R 1234yf
Standard: SAE J2064 SAE J3062 QC/T664-2019
| Manufacturer reference | 9331578892096 |
|---|---|
| OEM Part Number | 34306762838 3430 6762 838 |
| Parts | BRAKE HOSE FRONT TOYOTA CARINA 90947-02364 | OEM Number | 90947-02364 |
|---|---|---|---|
| Car Brand | TOYOTA | Car Model | COROLLA |
90947-02364 TOYOTA COROLLA Auto Brake Hose
‧Parts Brand:TOYOTA
‧Parts Model:COROLLA
‧Parts OEM Number:90947-02364
‧Parts Goods ID:5BH-A0117
‧Parts:Auto Brake Parts Auto Brake Hose
‧Parts Description:BRAKE HOSE FRONT TOYOTA COROLLA 90947-02364
The same item share OEM:
90947-02077 90947-02364
90947-02394 90947-02395 90947-02346 90947-02344 90947-02255 90947-02580
96940-32605 96940-31281 96940-31282 96940-31283 96940-31284 96940-31285 96940-30285 96940-30265
96940-02619 96940-32805 96940-32855
